WiggleCam Box
The wigglecam box design was first released in 2026. It is based on the prior design but only supports the larger 10" screen.

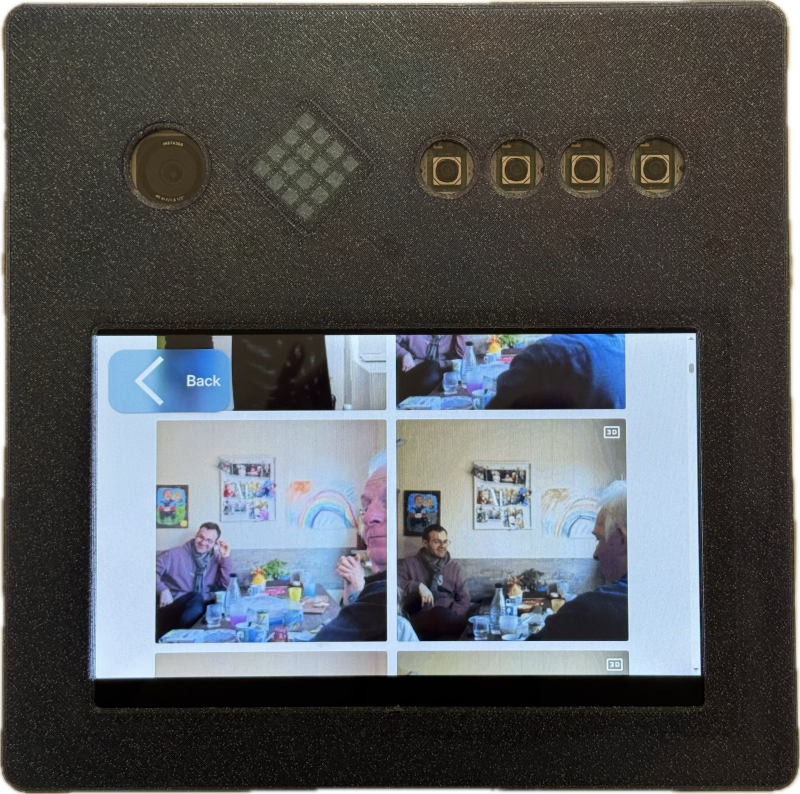

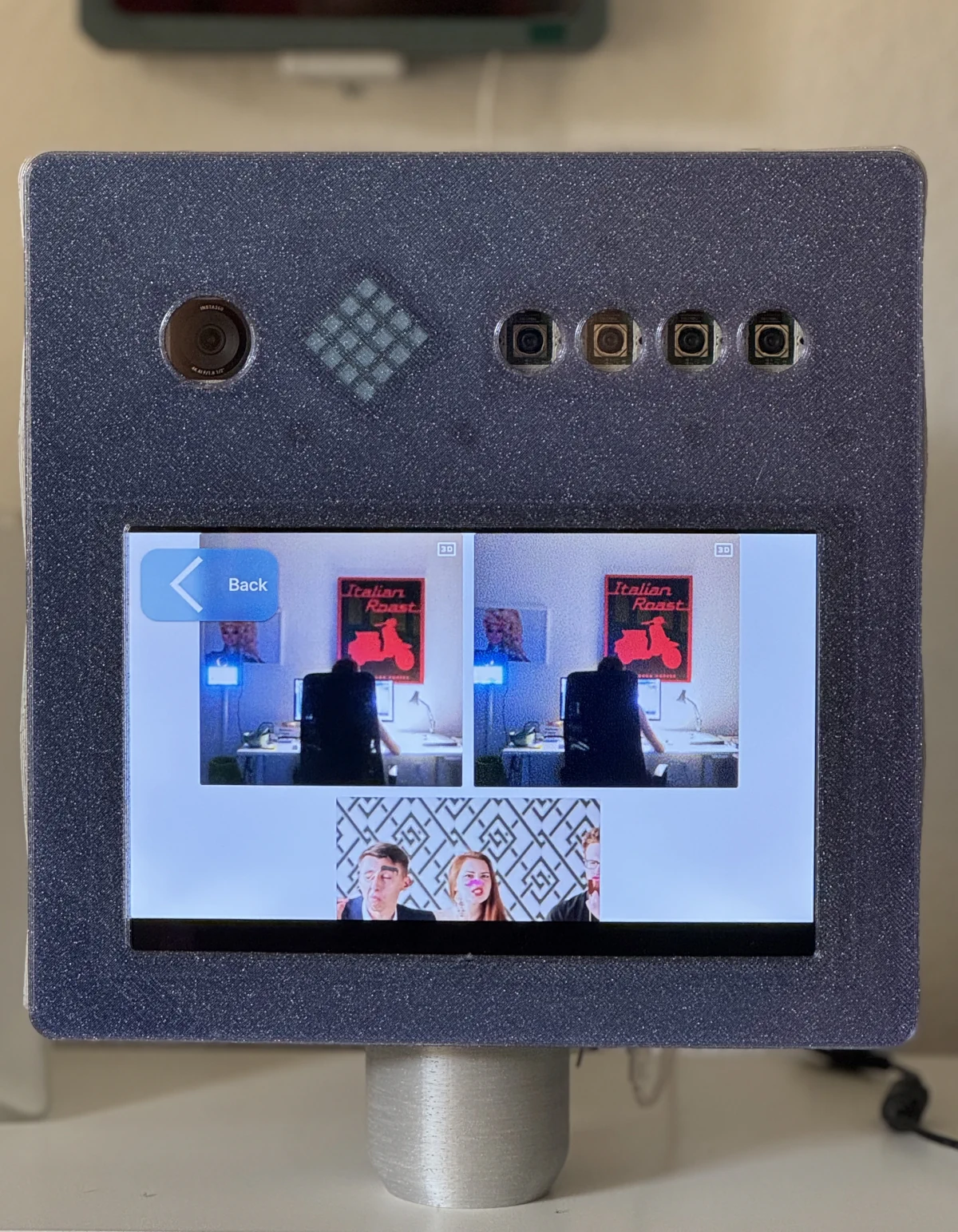

/// caption 3d printed photobooth box to build a wigglecam ///
😍 Features
- Webcam and Raspberry Pi Camera mounts for high quality stills
- 4 Pi Camera Modules v3 arranged in a group to capture wigglegrams.
- WLED matrix module signaling countdown and captures. The led matrix displays an arrow of the camera currently active.
- 10" touchscreen
Download
Current release files available:
- Solidworks CAD model
- STEP file to import in any CAD tool or the slicer
- 3mf file to start printing right away.
Earlier revisions are available in the archive down below.
🔧 Materials (BOM)
Components:
- Camera: Insta 360 Link 2C, Insta 360 Link 2C Pro or Pi Camera Module v3
- 10" screen Waveshare 10.1DP-CAPLCD
- Raspberry Pi 4 / 5
- WiggleCam Assembly: 4 x Pi Camera Module v3, 4x Pi Zero 2W, 4x MicroUSB Ethernet Adapter
- USB Type A - panel mount
- Bauer Electronics DC-DC SPW-1224V0510 (to supply the 5V components from 24V avoiding ac current in the box)
- Teltonica 5port Ethernet Switch TSW010
Other:
- DC jack
- Sortiment of M2 and M3 screws DIN912
- Sortiment of tapping screws DIN 7049 ST2 to ST3
- Axial Fan 30x30
- Led Matrix 5v RGB
- M2-4-3,2 heatinsert
- M3-5,7-4,6 heatinsert

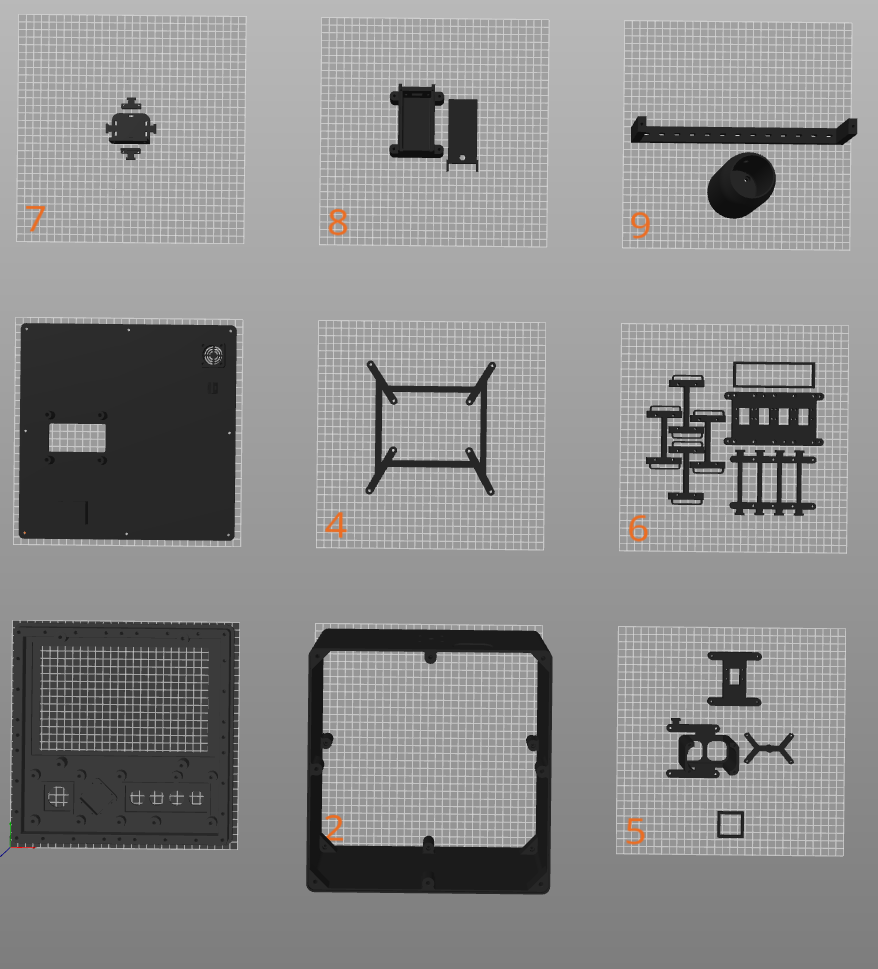

How to print
- Front Plate
- Frame
- Rear Plate
- Screen Mount
- Main camera mounts
- Top: Pi Camera v3
- Middle: Insta Link 2C (Pro)
- Bottom: Mount to fix a PMMA cover
- WiggleCam assembly group
- WLED module mount
- Rear mounted module for USB thumb drives
- Mount for a stand and a bridge to tie cables to

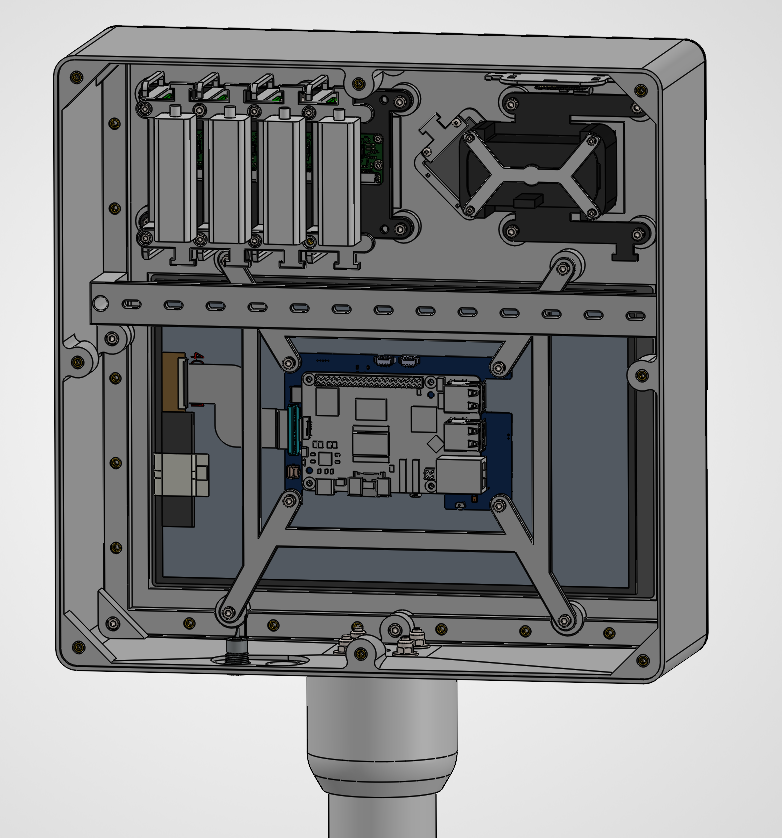

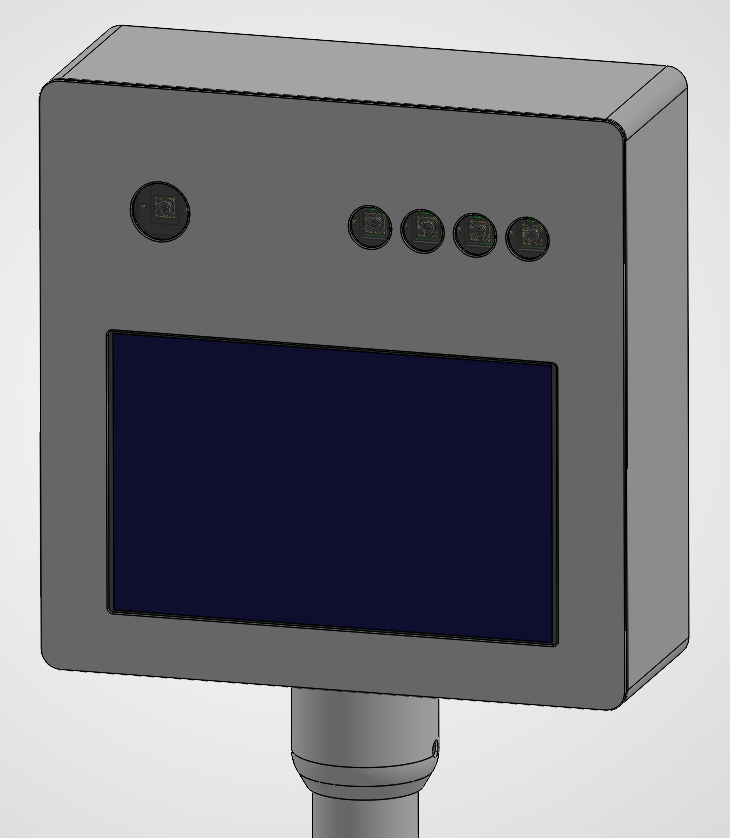

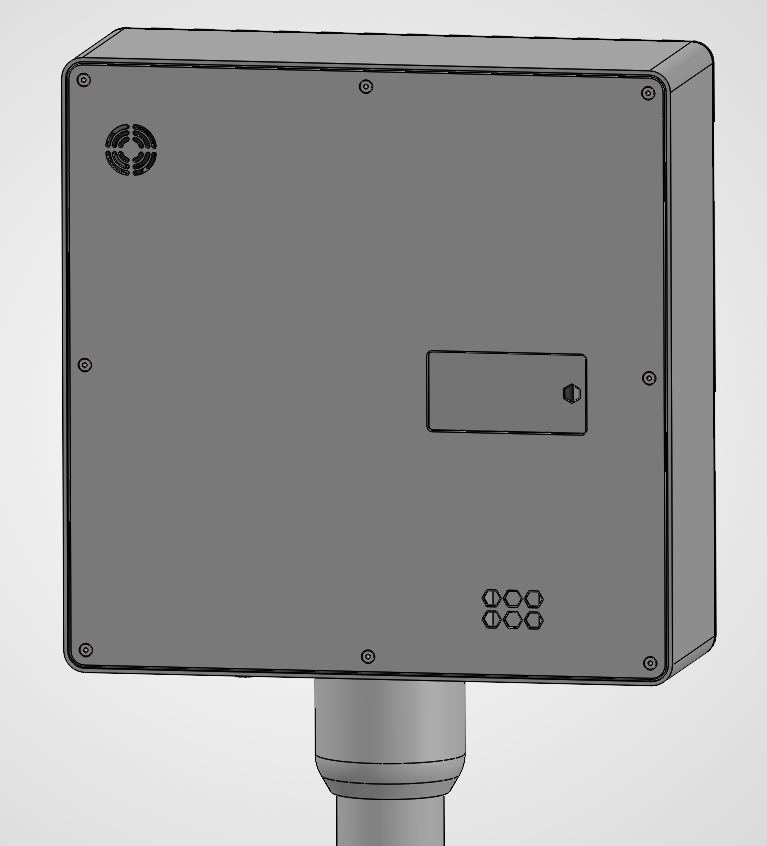

📷 CAD images of the box
🔍 Changelog / Archive
- rc3 release 2026-05-02
- initial release of the revised legacy box including wigglecam assembly
- prior rc3 releases
- never released, only for internal testing and improving
